Every type, built for the Highveld
Nine ranges cover every Johannesburg driveway, from a single-car steel frame to a plot-sized four-bay. Each range below has its own sizing and price band; the roof sheeting and gauge are chosen for hail and UV, not just for looks.
One car or bakkie, 3m × 6m, from R6,500. The Joburg entry structure.

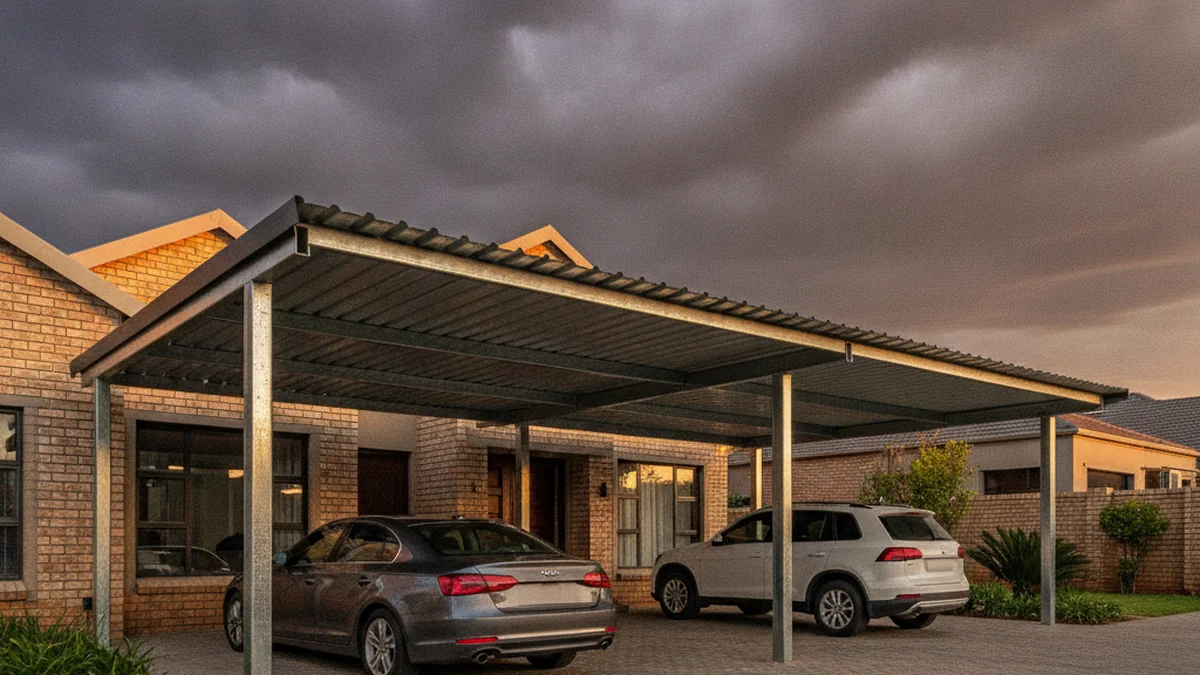

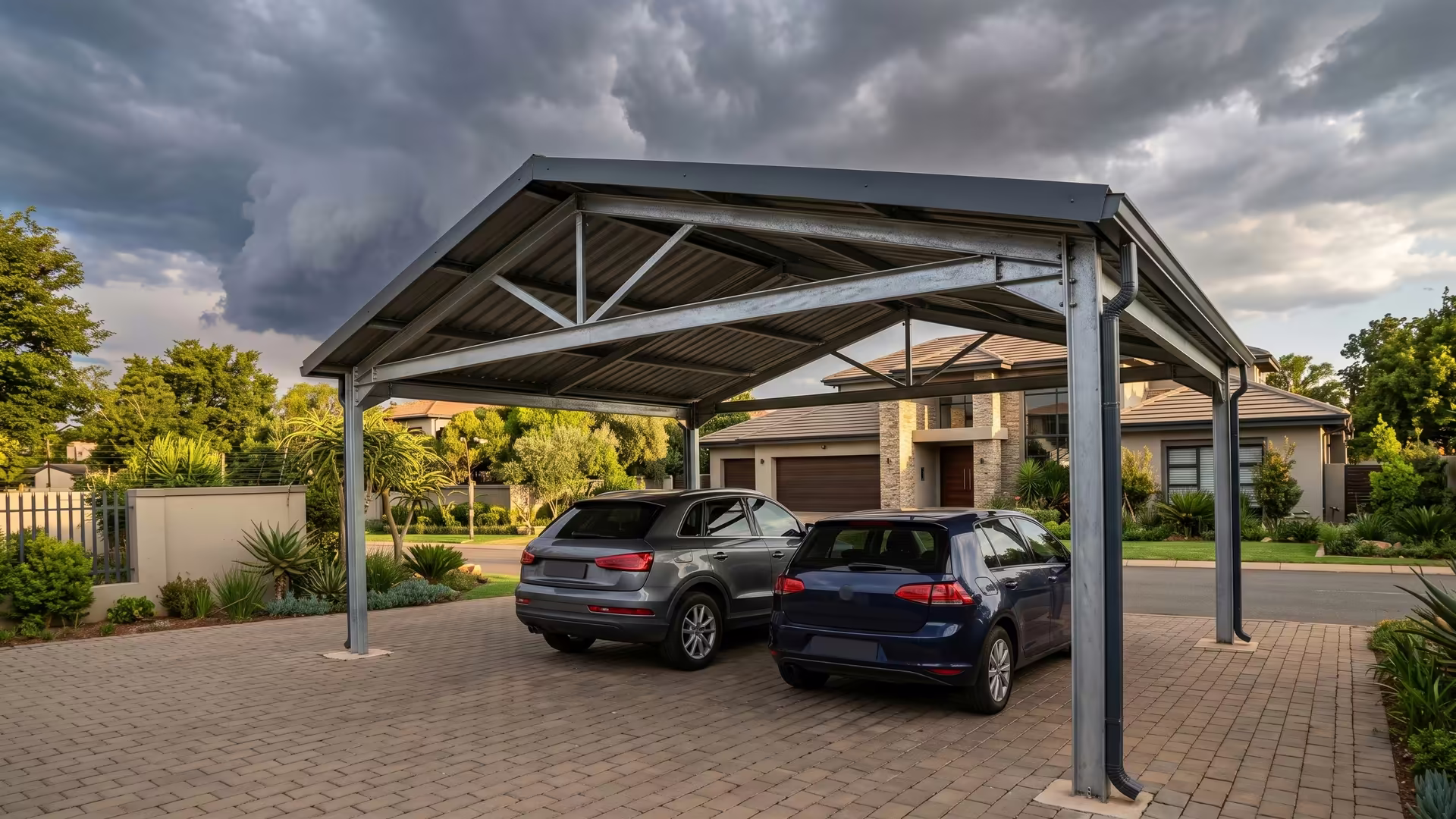

Two cars side by side, 6m × 6m, from R12,500. The most-fitted size in the northern suburbs.
Three-plus vehicles, boats and trailers on plots and smallholdings.
Galvanised frames with hail-rated IBR sheeting, the Highveld standard.
Rust-proof, powder-coated and light. The upmarket choice in the northern suburbs.
Timber-clad structures matching thatch, log homes and estate design rules.
No front posts. Park and reverse with the full width clear.
Shadeports from R4,500, the budget cover for UV and light hail.
Window, door and patio awnings that match the roofline.
Carport designs and custom design
The carport designs guide lists six roof designs (flat, mono-pitch, gable, lean-to, cantilever and curved) with a weather note for each. Compare them against the weather conditions at your own stand. Bring three things to a custom design discussion: the vehicle types you park with their real heights and lengths, a photo of the driveway, and the estate's design rules.
Note any workshop area inclusion, caravan bay or boat bay in the same brief, with the measurements of what goes under the roof and the space needed around it.
A wall mount roof (a lean-to) fixes one side of the roof to the house wall and carries the other side on posts. Before wall mount carport installations go ahead, ask who checks that the house wall can carry the roof. A cantilever design carries the roof from one side, so the open side has no posts.
Ask whether the custom design is drawn to your estate's design rules before anything is ordered. For a custom design carport on an estate, check the estate's submission rules as well as the council's.
How installations run on a Johannesburg stand
Two footing methods for carport installations are bolt-down and cast-in. Bolt-down installations fix base plates with anchors to an existing concrete slab, so ask who checks that the slab can take the load. Cast-in installations set the posts in new concrete footings dug into the soil. For sloped-stand installations, ask the installer which method the quote uses, ask for the footing design in writing, and ask how long the work takes on site.
For steel carport installations, cantilever roofs and wall mount lean-tos, ask how the frame is joined (welding or bolted brackets) and whether the steel is galvanised. For aluminium or timber carport installations, ask which finish the frame carries.
Safintra recommends a minimum pitch of 5° for Tufdek IBR roof slopes less than 15 m and 7.5° for slopes in excess of 15 m. Its Tufdek IBR page says purlin spacings depend on "both downward loading and negative suction loading caused by wind", and that an engineer should be consulted to calculate the load for the particular application. Of the weather conditions, wind is the one that note names. Ask whether the professional installation quote names the sheeting and follows its maker's pitch figures for the roof design. For weather protection against wind, ask how the professional installation spaces the purlins. Ask whether the engineer's load check is part of the professional installation price.
Before work starts on estate installations, ask the estate what it needs to see; for complex installations, ask the body corporate. The seven area cards below link to the area pages, from Krugersdorp plot installations to carport installations in Randburg and Midrand.
Areas we cover across Johannesburg
One free on-site measure covers the metro, from Midrand down to the southern ridge and from Krugersdorp across to Sandton. Johannesburg's diverse neighborhoods are grouped into the area pages below.
Sandton & the north
Sandton, Bryanston, Rivonia, Morningside and Hyde Park. Design-code doubles, aluminium and cantilevers.
Northern suburbs installationsRandburg
Ferndale, Blairgowrie, Cresta, Northcliff and Linden. Freehold stands, cast footings, older structures replaced.
Randburg installationsMidrand & Fourways
Waterfall, Kyalami, Lonehill, Sunninghill and Dainfern. New estates with written design manuals.
Midrand & Fourways installationsRoodepoort & the West Rand
Florida, Constantia Kloof, Weltevreden Park, Little Falls and Honeydew. Freehold stands with room for four bays.
West Rand installationsKrugersdorp
Noordheuwel, Rangeview, Featherbrooke and the Muldersdrift plot belt. Long-span structures.
Krugersdorp installationsSoweto & Lenasia
Orlando, Diepkloof, Pimville, Protea Glen and Eldorado Park. Value steel builds and shadeports.
Soweto & Lenasia installationsJohannesburg South
Mondeor, Glenvista, Winchester Hills, Rosettenville and Bassonia. Sloping ridge stands.
Johannesburg South installationsWhy Highveld weather conditions change the build
The Highveld summer decides the structure. Johannesburg sits at 1,753 m with the country's most intense hail belt, and afternoon storms from October to March drop hail that dents unprotected bonnets and cracks windscreens in minutes. Carport installations here are vehicle armour first and shade second, which is why the roof sheeting and steel gauge matter more than they do at the coast. KB Carports has been building carports in Johannesburg since 2012, first in Cape Town and now across Gauteng from the KB group. The full reasoning (IBR versus stretch cover, sheeting gauge and roof pitch) is in the Highveld hail protection guide.
What a carport costs in Johannesburg
A single steel build starts near R6,500 supplied and installed, a double runs R12,500–R24,000, and a triple R19,000–R38,000; shade net starts lower at R4,500 and aluminium prices at roughly one and a half times steel. The full band-by-band breakdown by type and size is on the carport prices in Johannesburg page, and the seating-to-size maths is in the carport sizes guide.
Planning the job
Check for zoning complications before ordering. The City of Johannesburg's standard document checklist for building plan submission lists the registered title deed, zoning information and the Surveyor General diagram for the group of buildings that includes an open sided carport, boat or caravan shelter under 40 square metres.
Ask for any warranties in writing with the quote. Under section 56(4) of the Consumer Protection Act 68 of 2008, a written warranty is in addition to the implied warranty of quality. Under section 56(2), within six months after the delivery of goods covered by the Act, a consumer may return goods that fail the section 55 standards, and the supplier must, at the consumer's direction, repair or replace them or refund the price. Section 55(6) disapplies the section 55(2)(a) and (b) rights (goods reasonably suitable for their usual purpose, and of good quality and free of defects) where the consumer was expressly informed that goods were offered in a specific condition and either expressly agreed to accept them in that condition or knowingly acted in a manner consistent with accepting them.
- Do you need council approval: the City of Johannesburg and estate rules, plainly.
- Carport installations in Johannesburg: how the measure, footing and fit run, start to finish.
Common questions
How much does a carport cost in Johannesburg?
A single steel build in Johannesburg starts at about R6,500 supplied and installed, a double runs R12,500–R24,000 and a triple R19,000–R38,000. Shade net starts near R4,500 and aluminium costs roughly one and a half times an equivalent steel structure.
Do KB Carports install across the whole of Johannesburg?
Yes. Carport installations run across the Greater Johannesburg metro, including Sandton, Randburg, Midrand, Fourways, Roodepoort, Krugersdorp, Soweto, Lenasia and the southern suburbs, with one free on-site measure and quote.
Will a steel roof protect my car from Highveld hail?
Yes, if the roof is solid steel. Hail-rated IBR or Q-deck steel sheeting protects a vehicle from the hail Johannesburg gets each summer. Shade net shadeports cut UV and small hail but do not stop large stones, and the shadeport comparison guide explains the difference.
Do I need council approval for a carport in Johannesburg?
Yes, in most cases. A fixed roofed structure on private property in the City of Johannesburg usually needs municipal building-plan approval, and estates and complexes add their own design rules. The council-approval guide covers when a plan is required and what KB supplies for it.
